ALL-IN-ONE POWER RACK + FUNCTIONAL TRAINER + SMITH MACHINE VERSION 2

$2,999.99
6 reviews

Pickup available at VERNON WAREHOUSE

Usually ready in 24 hours

The All-In-One Rack has sold out but Version 2 be available in early March 2025 (ETA). Please place your order today and your machine will ship as soon as it becomes available!

Version 2 features the following changes:

  • Pull-up bar has been changed to a multi-grip bar
  • 2x additional weight storage horns (8x total, 4x per side)
  • Quick-removable footplate for seated rows

THE ULTIMATE ALL-IN-ONE POWER RACK, FUNCTIONAL TRAINER, AND SMITH MACHINE!

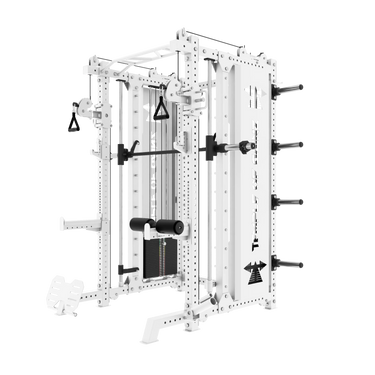

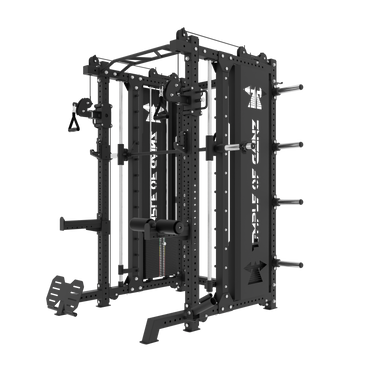

The Temple of Gainz All-in-One Power Rack + Functional Trainer + Smith Machine Version 2 is a complete training platform, perfect for home gyms, personal training studios, or any space where an all-in-one solution is needed in a small footprint.

This machine the ultimate combination of a power rack, functional trainer, and smith machine, with a heavy-duty steel frame. The standard-sized 75mm x 75mm powder-coated steel frame and 5/8" holes are the perfect modular platform for a number of rack attachments including our own (dip attachment, lat pulldown seat attachment, and monolift attachment), as well as rack attachments from other manufacturers that fit a 75mm x 75mm or 3"x 3" frame with 5/8" holes.

With an included barbell, two 220lbs (100kg) weight stacks, J-cups, safety supports, a foot plate, landmine, and a number of attachments, the All-in-One Rack Version 2 is everything you need to perform dozens of exercises safely and effectively.

If you are building a home gym and need just one machine/rack - this is it!

COMPARES TO FORCE USA G20 AND FRENCH FITNESS FSR100

FEATURES

Perform dozens of movements, including squats, deadlifts, Romanian deadlifts, bench press, overhead press, cable cross-overs, triceps pulldowns, lat pulldowns, overhead triceps extensions, unilateral and bilateral biceps cable curls, pull-ups, incline/decline/flat smith machine bench press, smith machine squats, and much, much more!

The heavy duty construction and front support feet mean no drilling required to secure your Grand Temple! (See weight restrictions in Tech Specs.)

Main Features:
- Power / Squat / Bench Press / Overhead Press Rack with Included Olympic Barbell
- Super-Smooth Action Ball Bearing Smith Machine with Knurled Bar
- Functional Trainer With Dual 220 lbs Weight Stacks
- Multiple Grip Pull Up Bar with Straight, Neutral, and Grip-Building Globe Handle Options

Accessories Included:
- 7' (86") 45 lb Olympic Bar (with excellent knurling and feel)
- Dual Hook Revolving Straight Bar (connects to both weight stacks)
- Lat Pulldown Bar (with excellent knurling and feel)
- Small Straight Bar (with excellent knurling and feel)
- Lat Pulldown Support Pad (for use with bench - not included - to create lat pulldown station)
- Biceps/Triceps Rope
- Safety Support / Bar Catch (Left)
- Safety Support / Bar Catch (Right)
- 2x Carabiners
- Landmine (can be placed on inside or outside of machine or excluded)
- Foot Plate (can be placed on either side or excluded)
- J Cup (left) and J Cup (Right)
- 2x Extension Chains (For Functional Trainer Attachments)
- 2x D-Handles
- T-Bar Row Handle (for use with landmine)
- Olympic Bar / Barbell Storage Hooks
- Attachment Storage Hooks
- 2x LockJaw Collars
- 6x Total Weight Horns (810 lbs total max capacity)

Optional Attachments:
- Dip Handle Attachment
- Lat Pulldown Seat Attachment
- Monolift Attachment
Tech Specs

- Black Powder-Coated Steel Square Tube: 75mm x 75mm x 3mm
- Size of Each Cable Column Hole (Front and Back): 0.658"
- Included Weight Stack: (2) 220lb stacks (440lbs total)
- Maximum User Weight: 350 lbs
- Maximum User Weight (Lat Pulldown Knee Cushion): 350 lbs
- Maximum Capacity (Pull Up Bar): 550 lbs
- Maximum Load (J Hooks): 990 lbs
- Maximum Load (Spotter Arms): 1100 lbs
- Maximum Load (Smith Bar): 990 lbs
- Maximum Load (Seated Foot Rest): 661 lbs
- Maximum Load (Plate Storage): 135 lbs (Per Weight Horn) x 6 Weight Horns = 810 lbs total
- Smith Bar Weight (No Added Weight): 46 lbs
- Smith Bearing Type: Ball Bearings
- Pulley to Weight Ratio: 2:1
- Inner Frame Width: 42.52"
- Height to Top Pulley: 90.78"
- Height to Top Metal Frame Post: 89.37"
- Height (Top of Pull Up Bar): 87.4" (2220 mm)

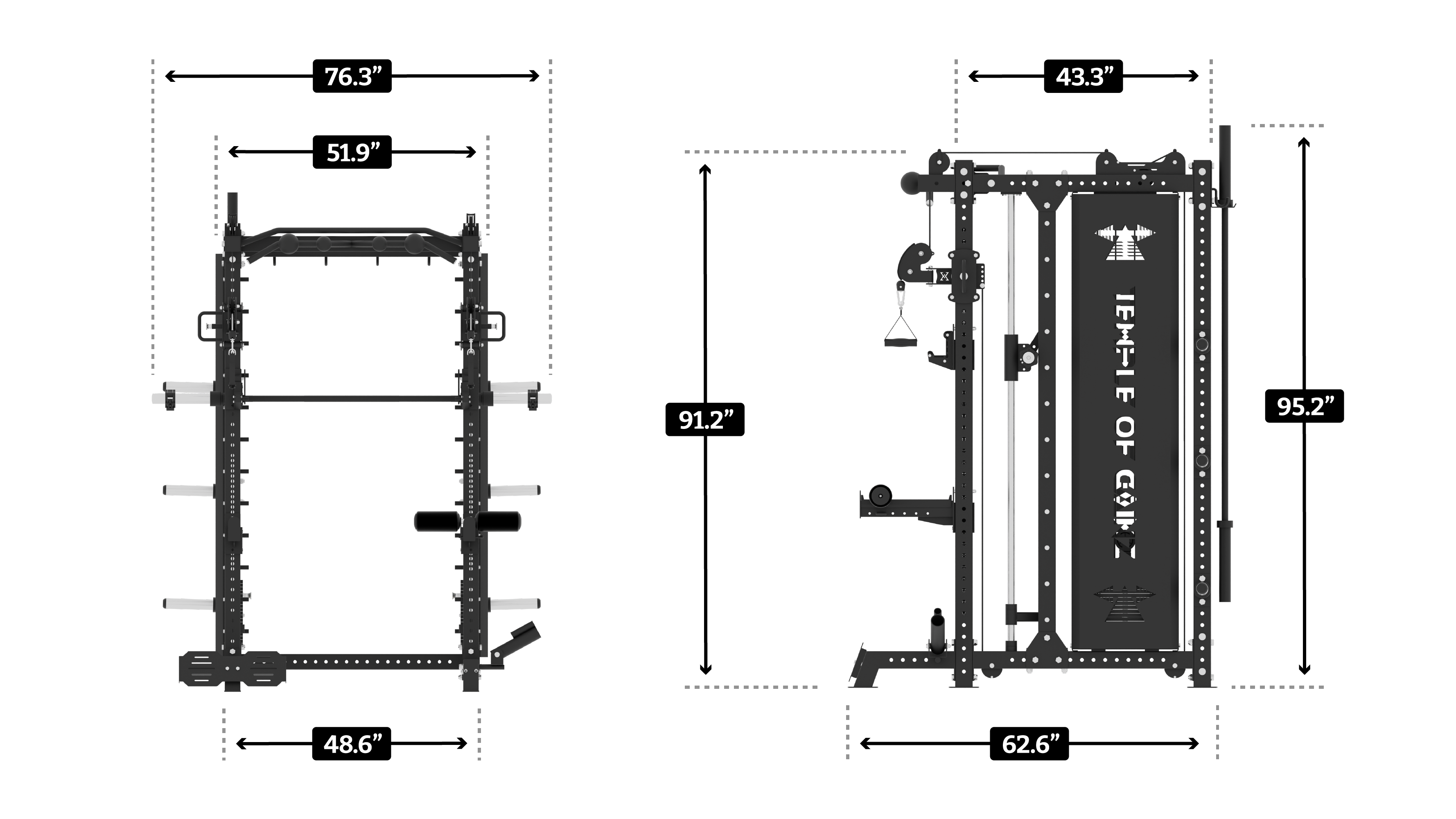

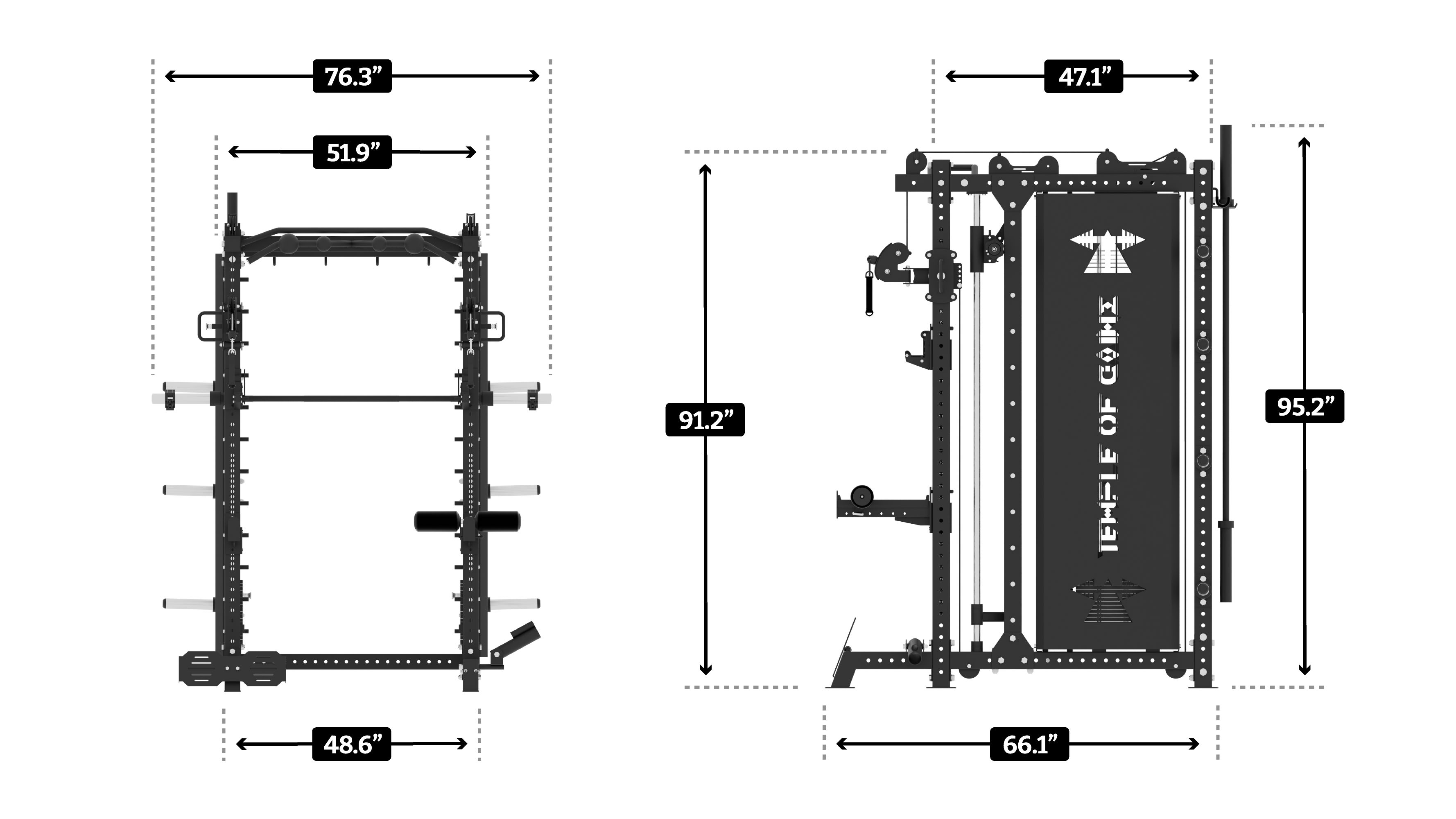

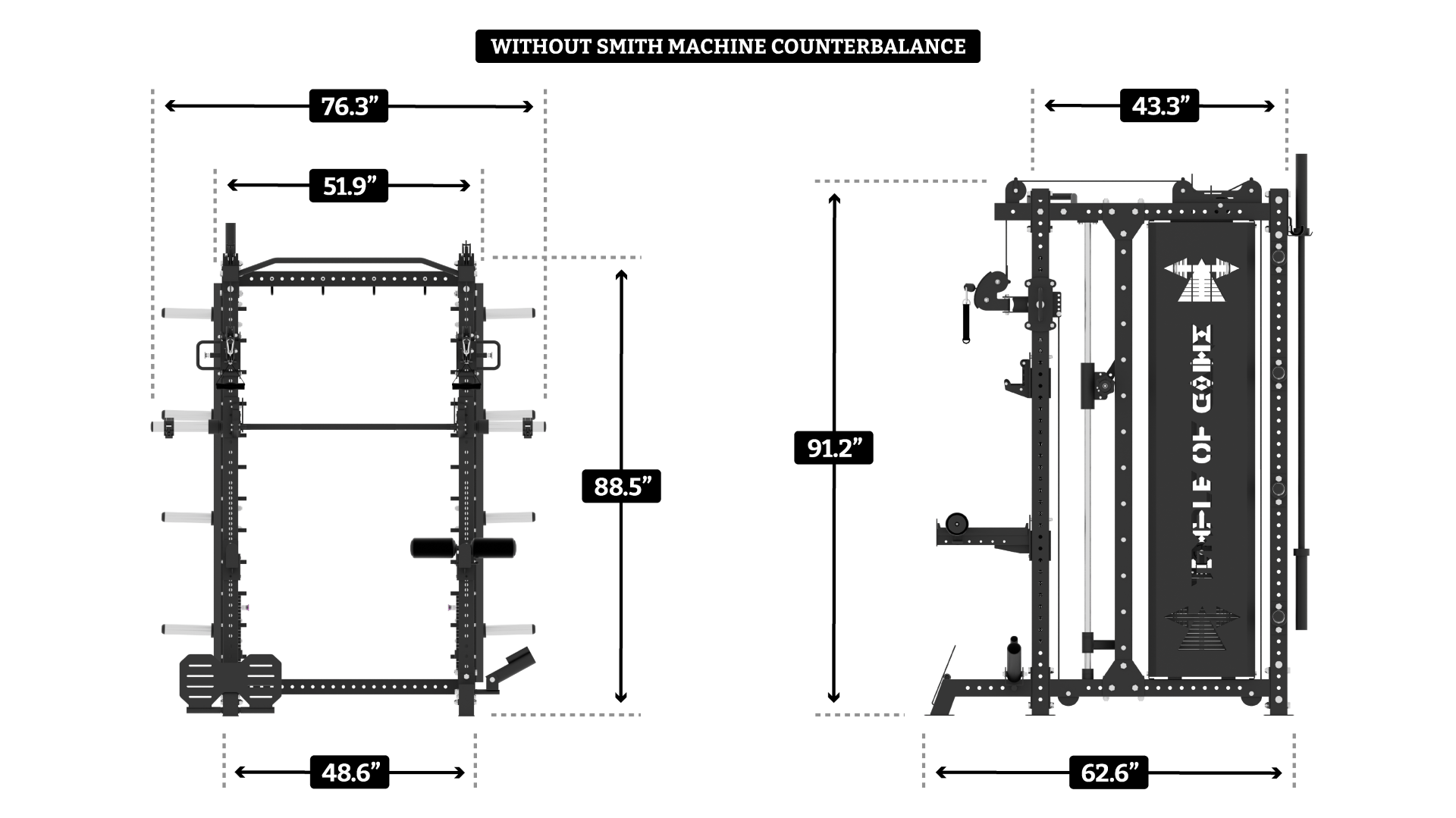

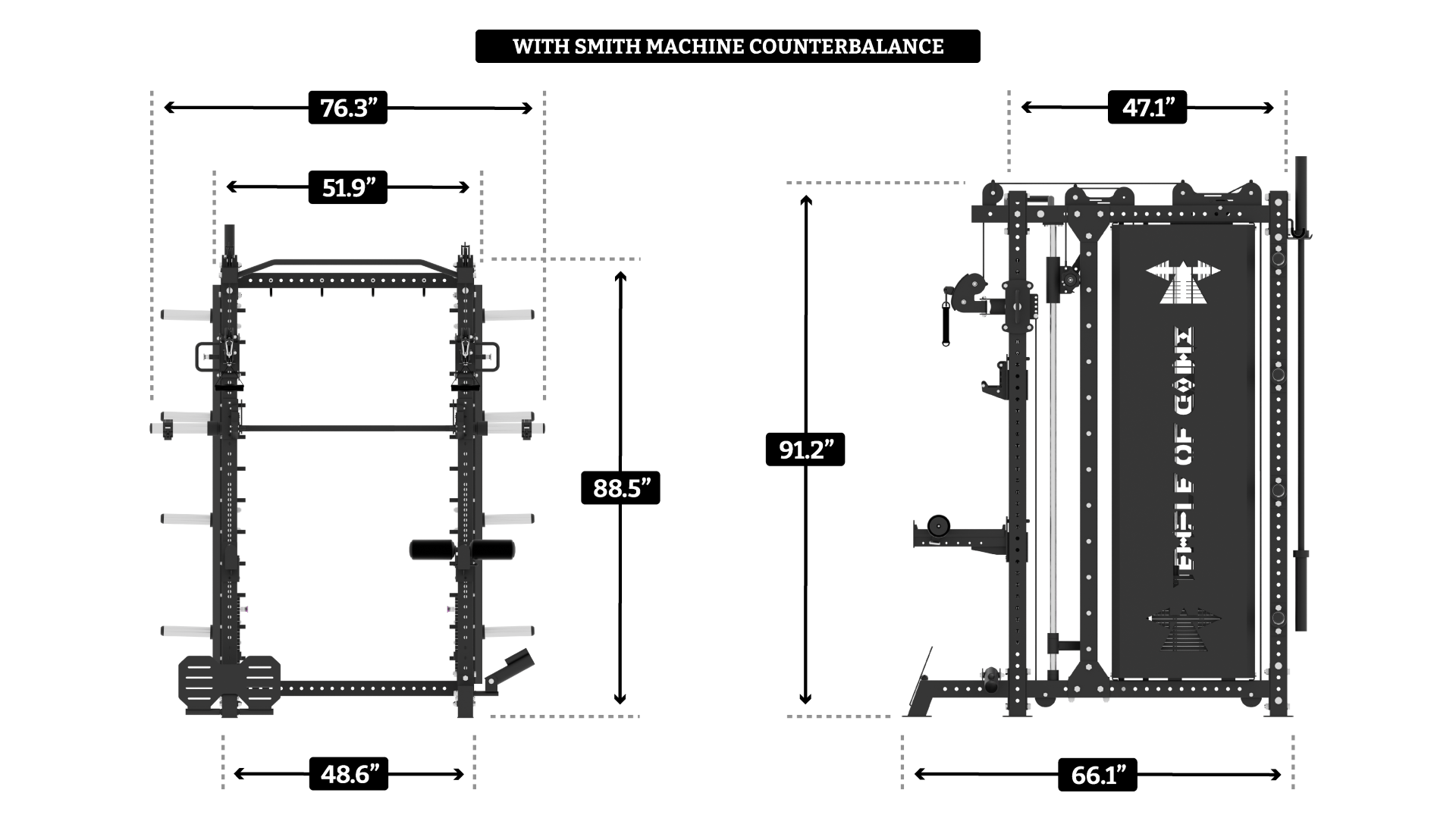

- Dimensions: 62.0" L x 75.5" W x 90.7" H (L:1600 mm, W:1920 mm, H:2306 mm)
- Total Weight: 1113.3lb (505kg)
- California Residents SEE PROP 65 WARNINGS
Warranty

- 10 Year Parts (Frame, Attachments, Cable)

★★★★★
★★★★★
★★★★★
★★★★★
